OIT Windows Imaging

--------------------------------------------------------------------------------

This document is to outline the sequential process of imaging a windows based computer.

Access

--------------------------------------------------------------------------------

Technician will need the following access:

Unity ID\LAN Account
LAN Admin Account
.ADMIN LAN account to AD Group: OITMD-Desktop Support Admins
.ADMIN LAN account to AD Group: OIT-All Admin Accounts
LAN account to AD Group: OIT-Comtech-Users-LANAdmins
InfoBlox IP registration - https://ipam.ddi.ncsu.edu

Possible needed access depending on scenario:

.ADMIN LAN account to AD Group: OIT-Original_Media-RO

Imaging a Windows Device:

Select an area to image the asset that is part of the 171 VLAN.
- All desks in the OIT Managed Desktop room and Build Room have ports that are on the 171 VLAN registered for imaging.

Unbox and connect power to the asset.

Power on the computer

Boot into the BIOS configuration screen. For Dell endpoints, repeatedly press F12 to enter the Setup menu. For Lenovo endpoints, repeatedly press ENTER to enter the Setup menu. For all other models, please wait for a prompt on screen or consult vendor documentation. Choose the BIOS configuration.
1. 1. In the BIOS you will check several items
    - General – Boot Sequence – UEFI
    - General - Advanced Boot Options – Uncheck Enable Legacy Option ROMs
    - System Configuration – Integrated NIC – Check Enable UEFI Network Stack
    - System Configuration – Integrated NIC – Select Enable w/PXE (only when ethernet port exists)
    - System Configuration - SATA Operation - Select AHCI (verify that RAID option is not selected since it is known to cause imaging issues, unless RAID is needed on that specific system)
    - Secure Boot Enable – Select Enabled
    - Power Management - AC Recovery - Last Power State (may not exist on Lenovos)
    - Power Management - Wake On LAN/WLAN - LAN or WLAN (may not exist on Lenovos)
    - Post Behavior - Fastboot - Minimal (may not exist on Lenovos)
    - Apply changes and Exit
  2. Leave all settings at DEFAULT

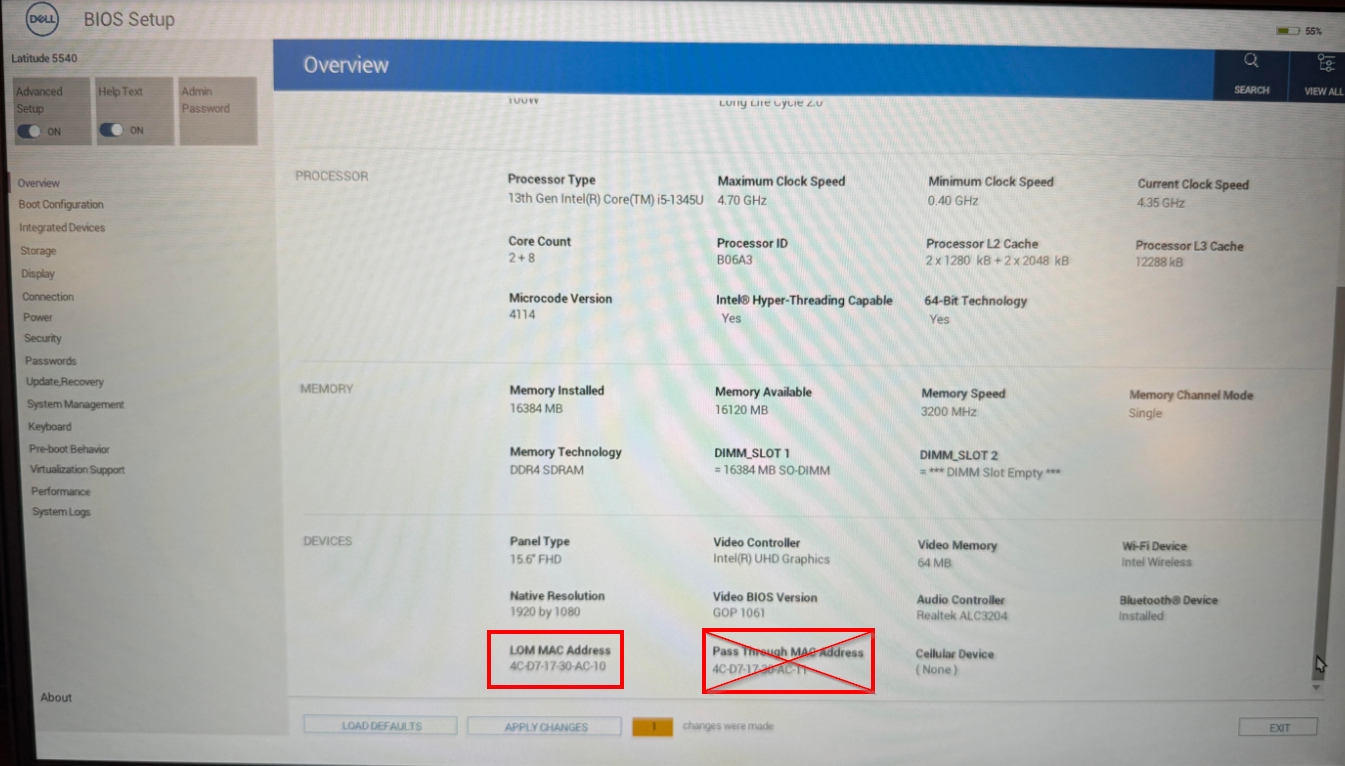

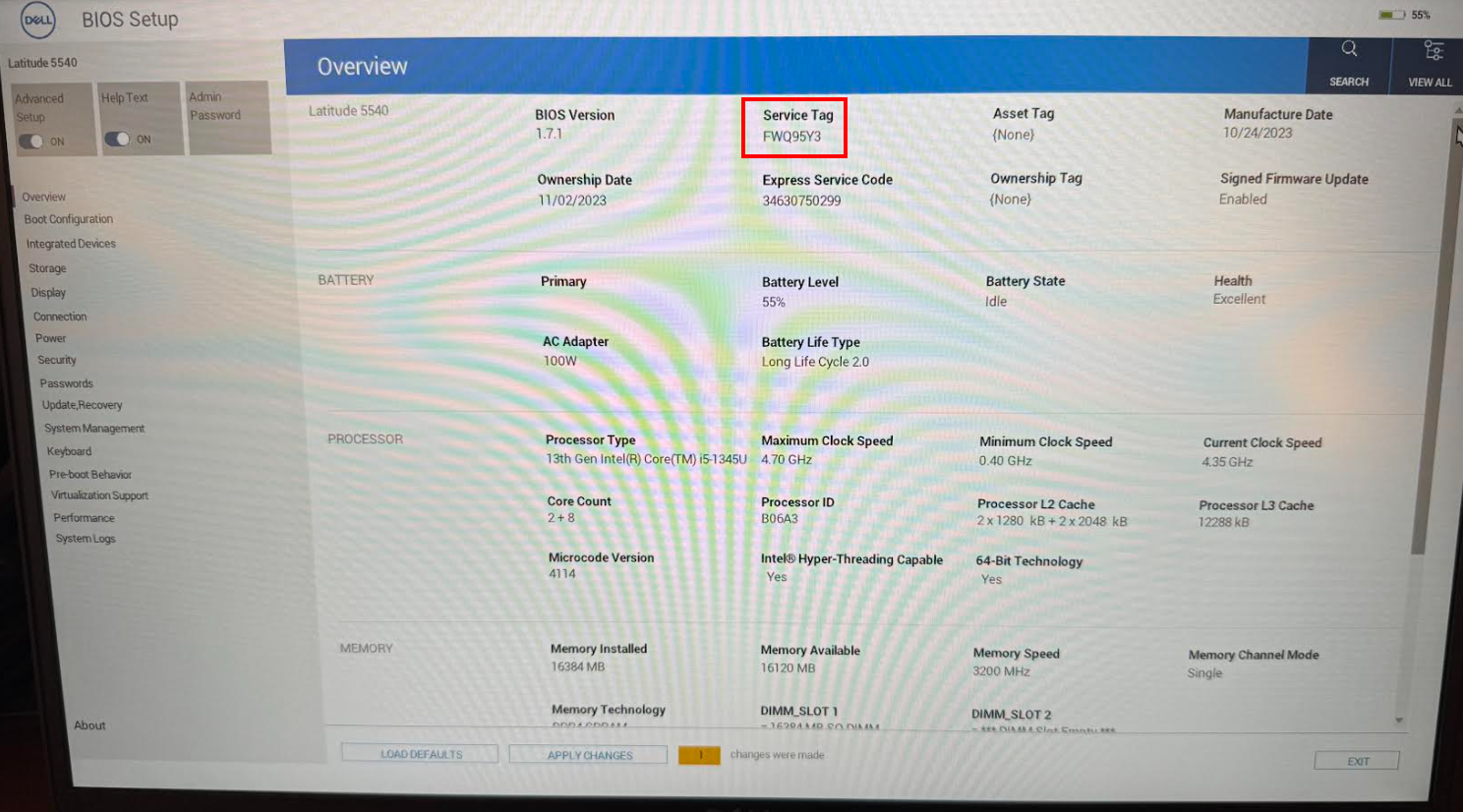

Record the Serial Number & LOM MAC Address for labelling the endpoint

The Endpoint name will be the Campus Unit Share Name/OU listed here and the last 6 characters of the LOM MAC Address. (Example: A PC belonging to the OIT Technical Shared Services Campus Unit with a MAC Address of 00:45:B2:14:08:E9 would be named OITTSS-1408E9)

Label the Asset: https://ncsu.service-now.com/kb?id=kb_article_view&sysparm_article=KB0020235

Prestage the asset: https://ncsu.service-now.com/kb_view.do?sysparm_article=KB0015758

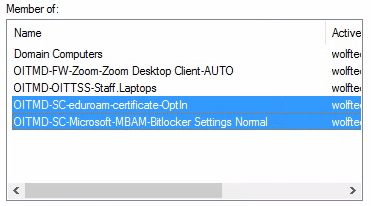

Add groups OITMD-SC-Microsoft-MBAM-Bitlocker Settings Normal & OITMD-SC-eduroam-certificate-OptIn to all laptop endpoints.

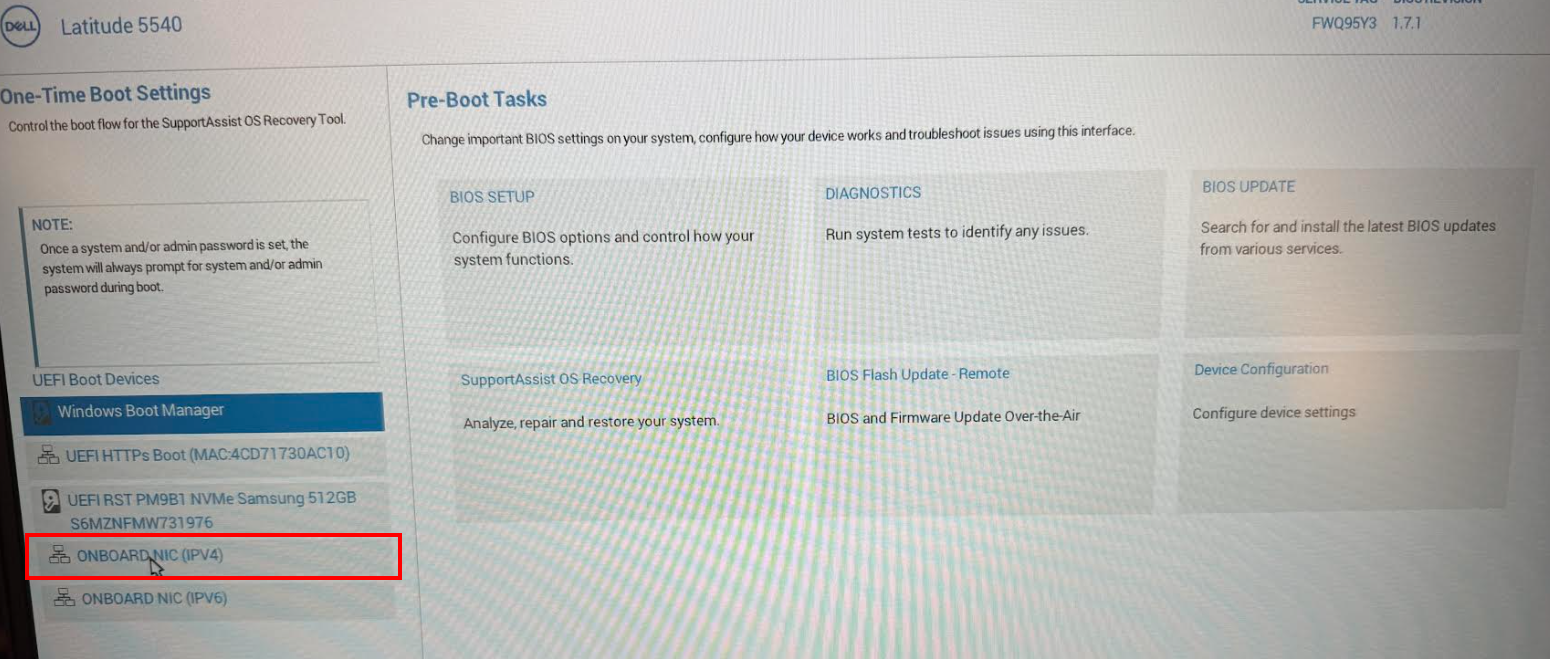

Reboot the asset once the asset has been prestaged and for Dell endpoints, repeatedly press F12 to enter the Setup menu. For Lenovo endpoints, repeatedly press ENTER to enter the Setup menu. For all other models, please wait for a prompt on screen or consult vendor documentation. Choose Boot Sequence IVP4

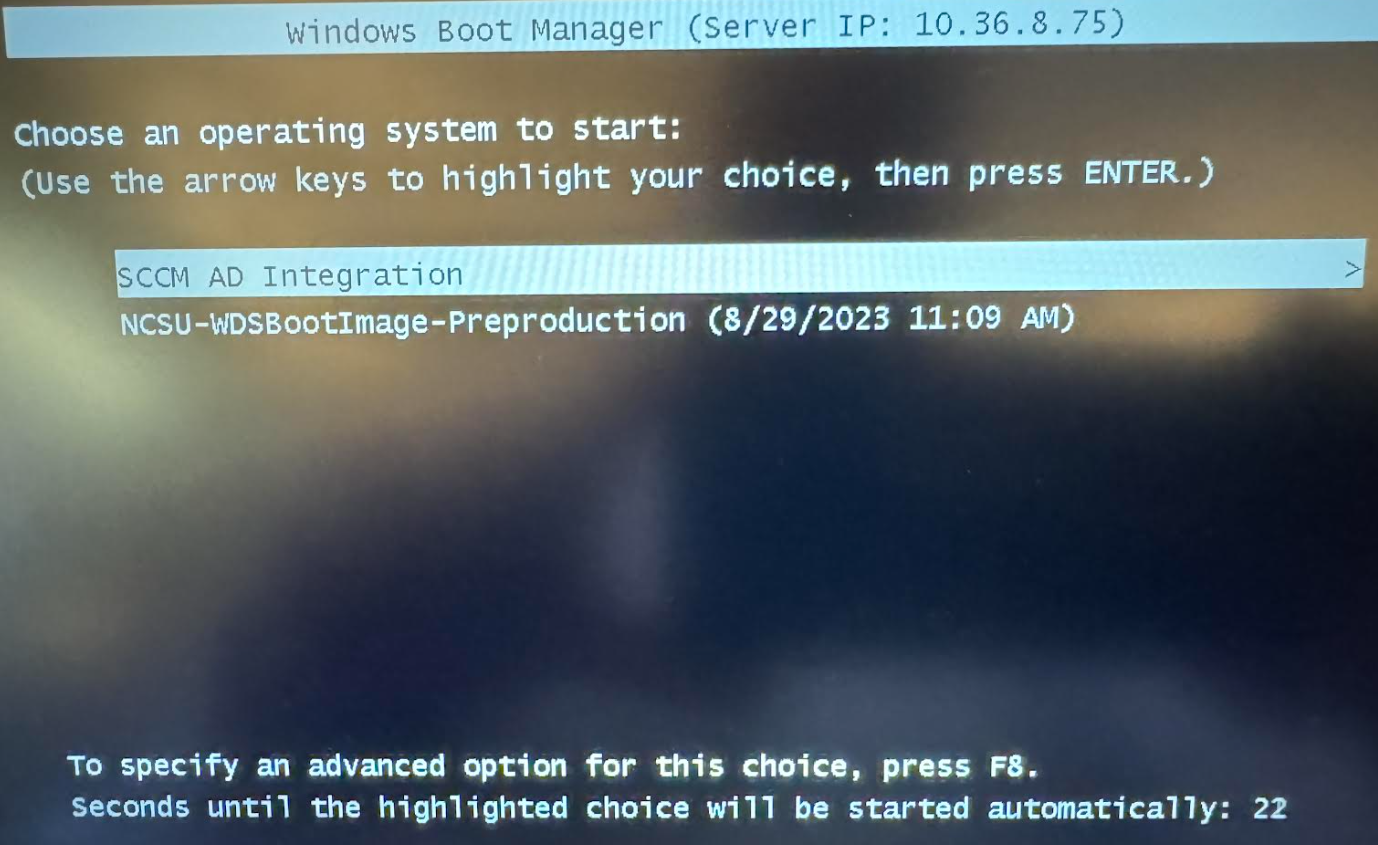

Choose SCCM AD Integration

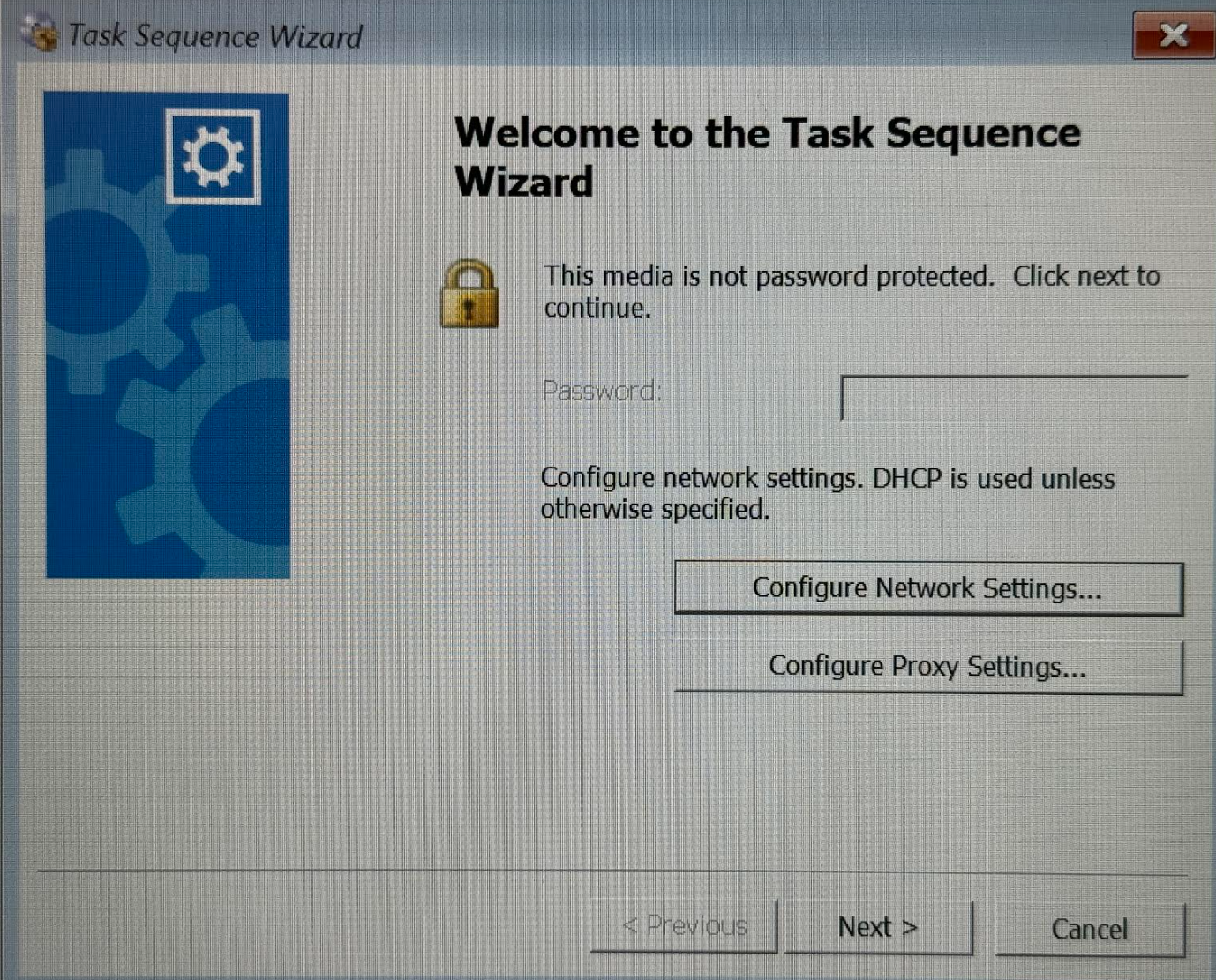

Accept defaults.

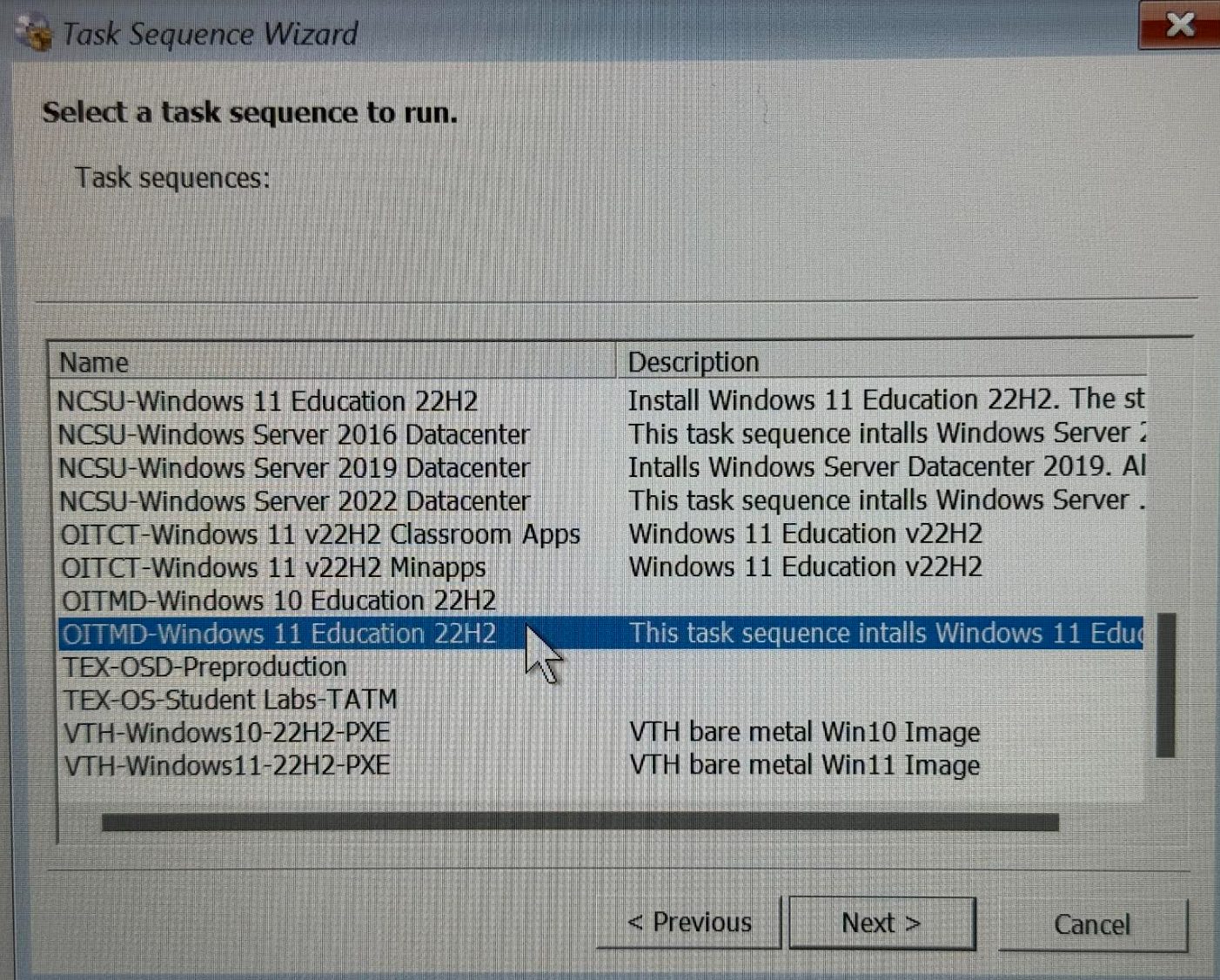

Choose OITMD - Windows 11 Education 22H2, choose OITMD - Windows 10 Education 22H2 if Windows 11 is not supported on that specific system.

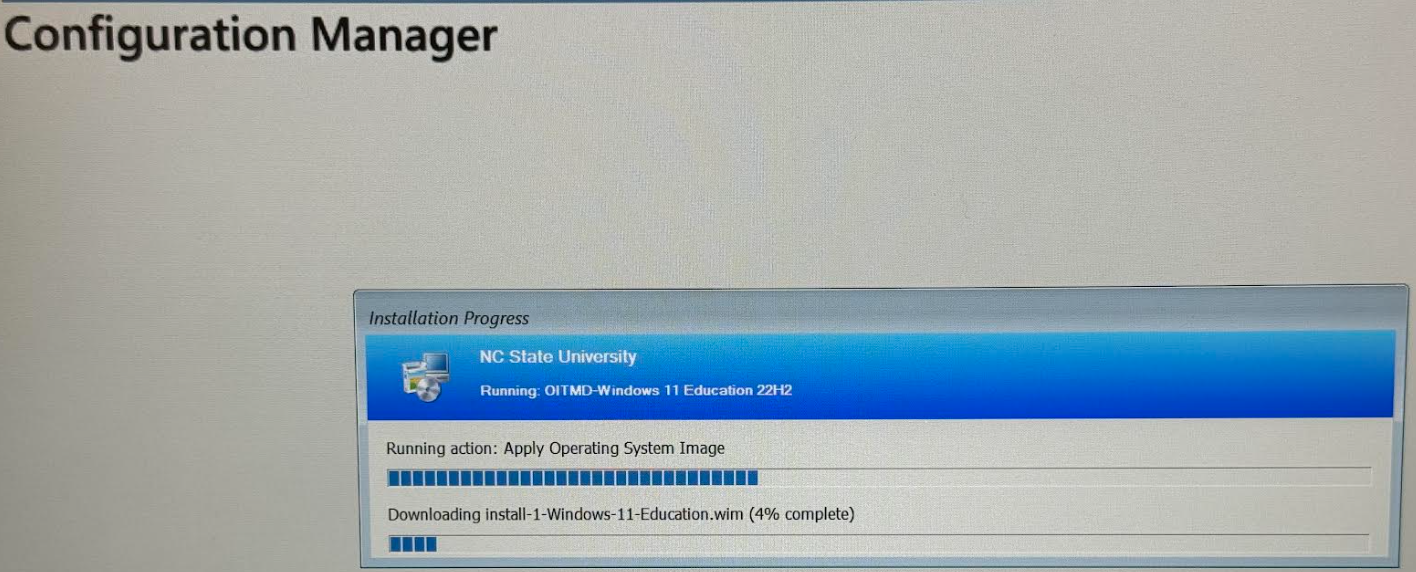

Wait approximately 2 to 4 hours for imaging process to complete.

Log into Windows with your Administrative Credentials

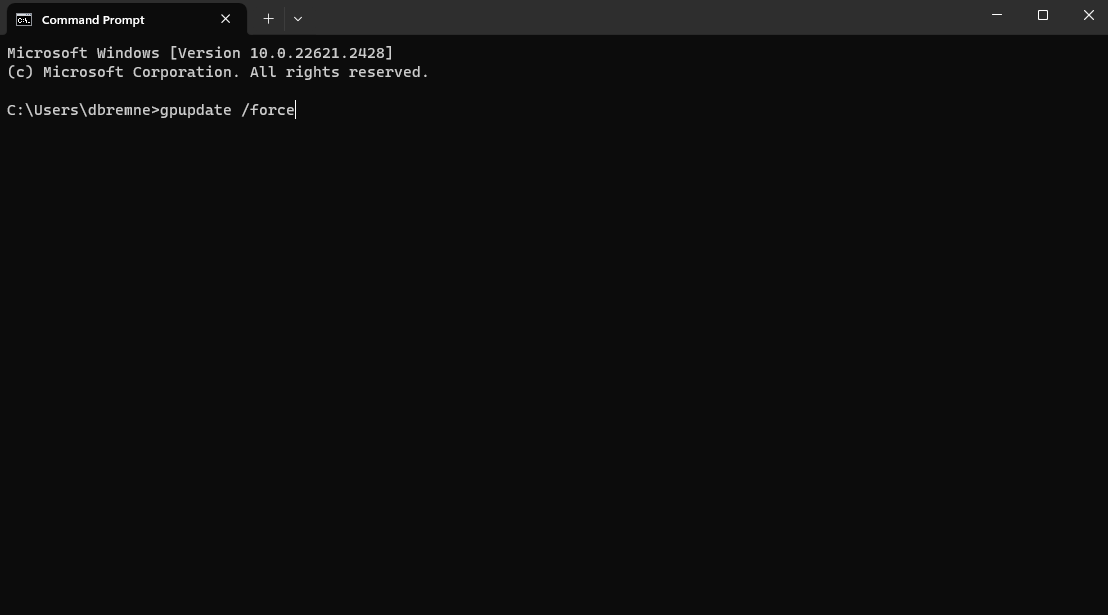

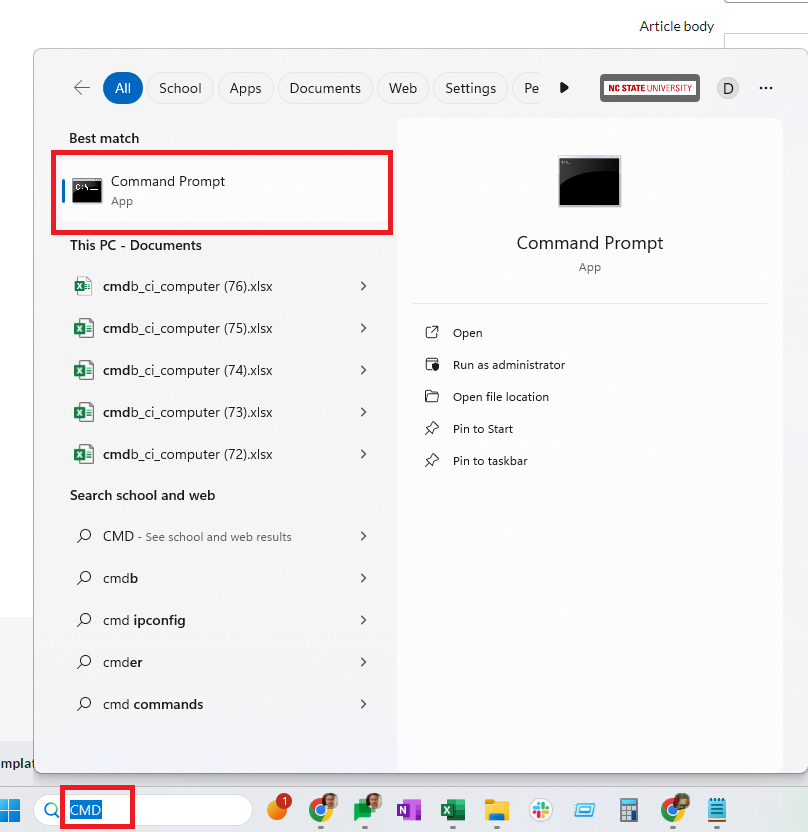

Run a command window from the start menu. (Cmd) Run command gpupdate /force (admin not needed for this action)

Check Software Center and Start Menu to ensure default software installed: Alertus, Adobe Acrobat, AnyConnect SBL, Microsoft365, Firefox, NCSU-FW-Google Chrome-Auto

Troubleshooting

--------------------------------------------------------------------------------

This section would detail how to support the application. If there are known fixes for specific errors, they would be detailed here. For more lengthy fixes, a link to a separate child page of this one can be used:

• PC is named MININT-XXXXXX: https://answers.microsoft.com/en-us/windows/forum/all/pc-displayed-as-minint-xxxxxxx-in-my-network/b4155efd-dc4e-4114-b91d-4c36ca223261

•

Escalation

--------------------------------------------------------------------------------

All additional information or questions can be directed to the Team leads or Manager of the OIT_DESKTOP_SUPPORT assignment group.
